Aluminium Alloy Angle Bar 6061 & 6082 T6

Tempers: Aluminium Alloy Angle Bar 6061 T6

Aluminium Alloy Angle Bar 6082 T6

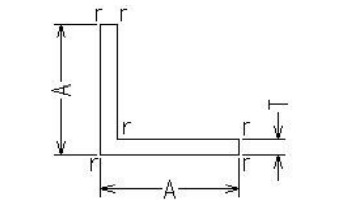

Aluminium Alloy Angle Bar 6061 & 6082 T6

Thickness	Width-1	Width-2	Length	Gs/tr
2.0 mm	25.40 mm	25.40 mm	6000 mm	0.258
3.0 mm	19.05 mm	19.05 mm	6000 mm	0.285
	25.40 mm	25.40 mm	6000 mm	0.377
	31.75 mm	31.75 mm	6000 mm	0.476
	38.10 mm	38.10 mm	6000 mm	0.557
	44.45 mm	44.45 mm	6000 mm	0.696
	50.80 mm	50.80 mm	6000 mm	0.776
	63.50 mm	63.50 mm	6000 mm	1.008
	76.20 mm	76.20 mm	6000 mm	1.215
	101.6 mm	101.6 mm	6000 mm	1.573
4.0 mm	40.0 mm	40.0 mm	6000 mm	0.823
4.5 mm	25.40 mm	25.40 mm	6000 mm	0.565
	31.75 mm	31.75 mm	6000 mm	0.719
	38.10 mm	38.10 mm	6000 mm	0.875
	50.80 mm	50.80 mm	6000 mm	1.185
	63.50 mm	63.50 mm	6000 mm	1.495
	76.20 mm	76.20 mm	6000 mm	1.803
	101.6 mm	101.6 mm	6000 mm	2.424
5.0 mm	40.0 mm	40.0 mm	6000 mm	1.016
5.0 mm	50.80 mm	50.80 mm	6000 mm	1.31
6.0 mm	25.40 mm	25.40 mm	6000 mm	0.729
	31.75 mm	31.75 mm	6000 mm	0.934
	38.10 mm	38.10 mm	6000 mm	1.125
	44.45 mm	44.45 mm	6000 mm	1.326
	50.80 mm	50.80 mm	6000 mm	1.53
	63.50 mm	63.50 mm	6000 mm	1.938
	76.20 mm	76.20 mm	6000 mm	2.381
	88.90 mm	88.90 mm	6000 mm	2.793
	101.6 mm	101.6 mm	6000 mm	3.209
	152.4 mm	152.4 mm	6000 mm	4.85
8.0 mm	50.80 mm	50.80 mm	6000 mm	2.03
	76.20 mm	76.20 mm	6000 mm	3.133
	101.6 mm	101.6 mm	6000 mm	4.237
9.53 mm	50.80 mm	50.80 mm	6000 mm	2.431
	63.50 mm	63.50 mm	6000 mm	3.086
	76.20 mm	76.20 mm	6000 mm	3.743
	101.6 mm	101.6 mm	6000 mm	5.058
	127.0 mm	127.0 mm	6000 mm	6.075
	152.0 mm	152.0 mm	6000 mm	7.731
12.7 mm	101.6 mm	101.6 mm	6000 mm	6.656
12.7 mm	152.0 mm	152.0 mm	6000 mm	10.156

Custom & Indent Items

Dimensions not listed above and items marked Indent are available via mill / works production on a made-to-order basis. Subject to minimum order quantities (MOQ).
